Postby Simon » Sat Jan 12, 2008 9:48 am

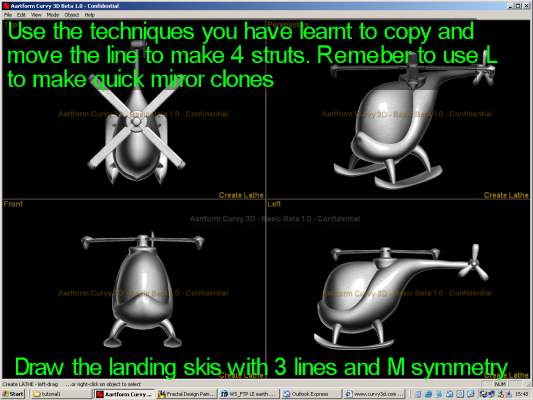

Ok, from zero to helicopter in 20 minutes :)

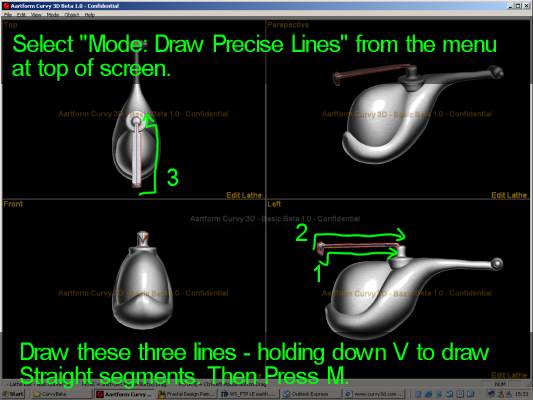

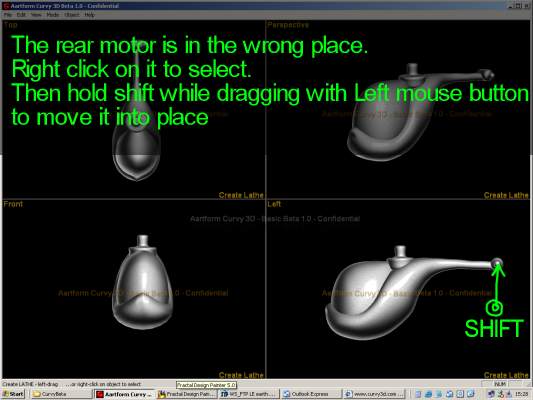

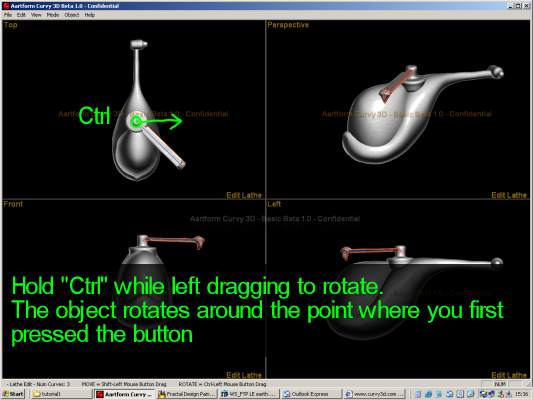

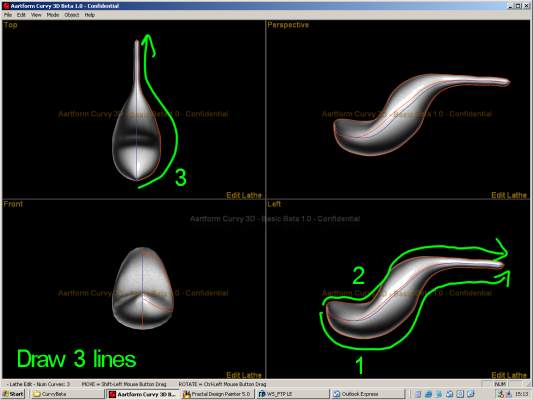

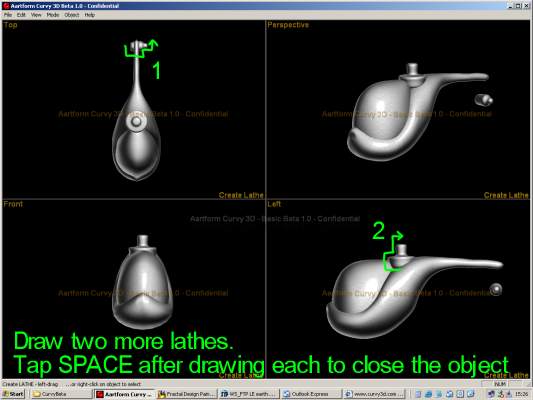

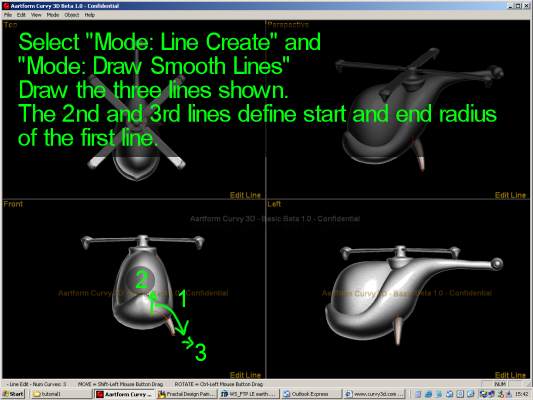

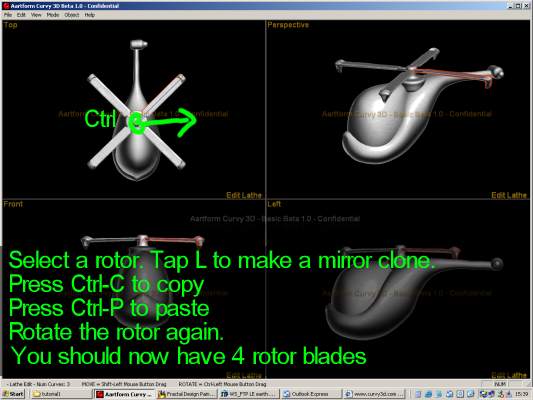

This tutorial teaches how to use Lathes, Lines, Move, Rotate, Copy, Mirror Clone, Symmetry... read on 8)


Adding materials and a background will be explained in a different tutorial. Here is a quickly coloured version of the model.
Last edited by Simon on Sun Dec 13, 2009 12:12 am, edited 1 time in total.
Simon
C.E.O.

Posts: 1982
Joined: Wed Dec 01, 2004 8:13 am
Location: Kingston Upon Thames, U.K.

Postby bigH » Sat Jan 12, 2008 12:24 pm

this is a good way to learn and fun to do ! 8)
bigH
Curvy3D Professional

Posts: 795
Joined: Mon Nov 24, 2003 8:34 pm
Location: nc usa and http://artnutz.us/

Postby kenmojr » Sat Feb 28, 2009 2:40 am

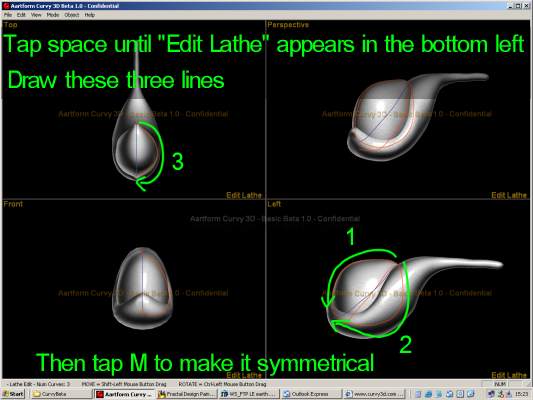

I can't get the "Edit Lathe" to appear no matter how many times I tap the spacebar... All I get is "FILE" and "OBJECT"... :cry: :cry: :cry:
kenmojr

Posts: 28
Joined: Sat Feb 14, 2009 4:17 pm

Postby Simon » Sat Feb 28, 2009 12:08 pm

This a pretty old tutorial - you can select the lathe from the tools panel in the top right (Its the second option and you'll get a tooltip if you hover over it)
Simon
C.E.O.

Posts: 1982
Joined: Wed Dec 01, 2004 8:13 am
Location: Kingston Upon Thames, U.K.
